3 Easy Ways To Convert RGB To CMYK In Illustrator

RGB (Red, Green, Blue) and CMYK (Cyan, Magenta, Yellow, Black) are two different color modes commonly used in graphic design. RGB is mainly used for digital displays, while CMYK is used for printing.

Ready to discover how to convert RGB to CMYK in Illustrator? Let’s dive in!

how to convert rgb to cmyk in illustrator

How To Change RGB To CMYK In Illustrator

The best way to convert RGB to CMYK is to select your colored object, select Window > Color, and click the options link in the top right-hand corner of the Color panel. Select CMYK and adjust the color in the Color Picker.

Here are the various ways and steps to convert RGB to CMYK in Adobe Illustrator:

1. Convert The Illustrator Document

If you are sending your design file to print, and your Illustrator document is in RGB, you will have to change your whole Illustrator document to CMYK.

Here’s how you do it:

The conversion process is straightforward in Adobe Illustrator:

1. Open the Adobe Illustrator file you wish to convert. Right now your document may be in the RGB color mode as shown on your document tab in the top left-hand corner.

RGB document color mode showing in adobe illustrator tab

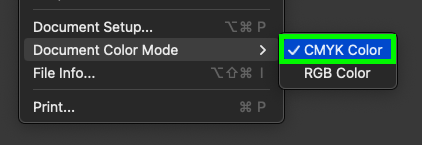

2. Navigate to File > Document Color Mode. Choose the CMYK color option.

change document color mode from RGB to CMYK in adobe illustrator

Your CMYK conversion is done!

2. Convert Individual Elements

If you want to convert individual elements rather than the whole document:

Select the object. Go to Edit > Edit Colors > Convert to CMYK.

select File and edit colors and convert to cmyk in adobe illustrator

3. Adjust Colors

Although you have changed the document color mode from RGB to CMYK, that doesn’t help you adjust the colors in your design. Although the color mode is already in CMYK, the shades and tones may not be accurate. You will have to check and adjust each of the colored elements. Here’s how you do it:

Select the object with the RGB color.

Open the Color panel by selecting Window > Color.

select window to open color panel in adobe illustrator

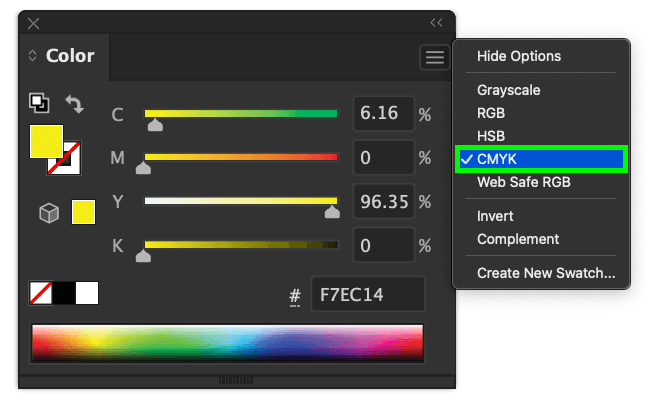

On the Color panel, top right-hand corner, select the options link with the three lines.

select options button in color panel in adobe illustrator

Select the CMYK option in the dropdown menu.

select CMYK in the dropdown of color panel in adobe illustrator

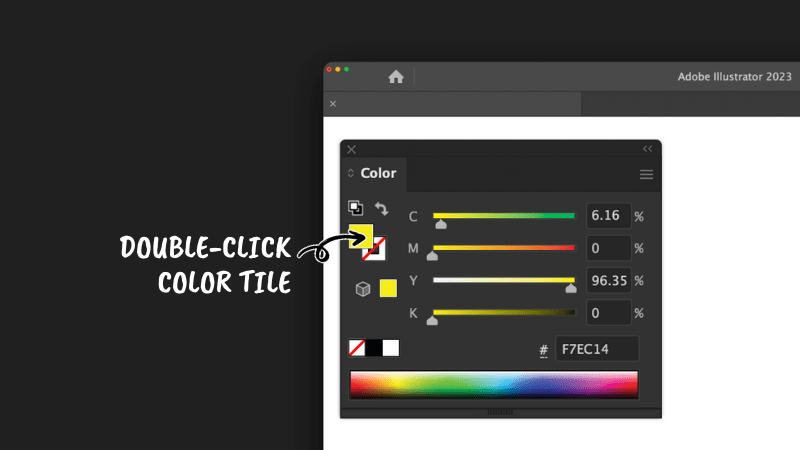

Double-click on the filled color tile. A Color Picker opens up.

double-click color tile in color panel in illustrator

In the color picker, you can view CMYK values and RGB colors.

Start adjusting the color by picking a color in the Color Picker dialog box.

The color panel and color palette will also adjust according to the color settings and color model you choose.

Click the OK button.

select OK button in the color picker dialog box

What Are RGB and CMYK Color Modes

Wondering what are the main differences between RGB and CMYK color modes? RGB (Red, Green, Blue) operates in an additive color process, typically used for digital device displays like computer monitors.

CMYK (Cyan, Magenta, Yellow, Black) employs a subtractive mixing of colors, primarily used for color printing.

RGB Color Space vs CMYK Color Space

The RGB color space offers a wider range of colors by mixing colors of light. The CMYK color space, on the other hand, combines colors of ink and is used in color printing. You might notice different colors when switching from one to the other.

In general, RGB colors always look brighter on screen and when converted to CMYK, the colors will look darker.

Why CMYK Over RGB for Printing

The best option for high-resolution, high-quality printing is the CMYK color modeCMYK values are tailored for color printing, giving you better control and better results.

Your print shop and printing company will thank you for providing files in the right format.

Subtractive Colors vs Additive Model

The subtractive colors in the CMYK model mean that colors are mixed using ink, whereas the additive model in RGB mode involves the mixing of light. Your final product will be more accurate in CMYK.

Spot Colors and ICC Profiles

When you’re working on high-end projects, ICC profiles can help you manage color profiles for better accuracy. Spot colors, like Pantone colors, can also be converted to CMYK using the Edit Colors option.

Issues to Watch Out For

  • Rich Colors: RGB has neon and rich colors that CMYK may not replicate.
  • Color Changes: RGB colors might appear differently when converted to CMYK format.

Related: How To Change Color Of PNG In Illustrator

Additional Tools and Software

  • Adobe Photoshop: Another design program you can use for color conversion.
  • Adobe InDesign: Suitable for larger layout projects with multiple pages.
  • Online Converter: Free tools are available for quick conversions.
  • GIMP Open-Source: A free image editor that also allows color conversion.

Final Thoughts: RGB To CMYK In Illustrator

Adobe Illustrator makes it simple to convert your RGB design to CMYK files, essential for color printing. You have different ways to convert colors, and understanding the color conversion process will help you produce high-quality print work.

For any further questions in printing, do ask your print provider or printing company for the best result.

Meantime, if you are wondering how to convert CMYK to RGB in Illustrator, you can use the steps in this guide as well.

FAQ

How To Convert RGB To CMYK Without Losing Color Illustrator?

Minimize Color Loss: The conversion from RGB to CMYK inherently involves some color changes, especially since RGB has a wider range of colors. But you can minimize color loss by managing your color profiles properly.

ICC Profiles: Use ICC profiles to ensure that your RGB and CMYK spaces are as closely matched as possible.

Preview: Use Illustrator’s “Soft Proofing” feature to preview how the colors will look in CMYK. Make any adjustments to colors as needed before the final conversion.

How Can I Convert RGB To CMYK?

You can convert RGB to CMYK in the following ways:

In Adobe Illustrator:

  1. Open your Adobe Illustrator file.
  2. Go to File > Document Color Mode.
  3. Select CMYK Color from the dropdown.

In Adobe Photoshop:

  1. Open your file.
  2. Navigate to Image > Mode > CMYK Color.

Online Tools:

  • Use an online converter if you’re not using design programs like Illustrator or Photoshop. Just upload your RGB file, and the online tool will convert it to CMYK.

Should I Convert RGB To CMYK For Printing?

Yes — Converting from RGB to CMYK is essential for most types of color printing. The CMYK color model is designed for printing and offers better results and color accuracy when ink is applied to paper. If you’re working with a print shop or a printing company, they’ll often request files in CMYK format.

How Do I Get CMYK Color Code In Illustrator?

Here’s how you get CMYK color code in Illustrator:

  1. Open Adobe Illustrator.
  2. Make sure your document is in CMYK mode. If not, go to File > Document Color Mode > CMYK Color.
  3. Select the object whose color you want to check.
  4. Open the Color Panel.
  5. The CMYK values will be displayed in the panel, showing you the percentages of Cyan, Magenta, Yellow, and Black that make up the color.

How Do I Convert RGB To CMYK Before Printing?

Before you send your files off to the print shop, ensure you’ve converted them to the CMYK color mode for the best results. Here’s how to convert RGB to CMYK before printing:

  1. Open your Adobe Illustrator project.
  2. Navigate to File > Document Color Mode.
  3. Select CMYK Color.
  4. A pop-up may appear warning you about the color shift. Read and confirm the changes.
  5. Save your newly converted CMYK file. It’s a good idea to save it as a high-quality PDF, as this is a widely accepted file type for printing.

How Do I Change An Image From RGB To CMYK Without Losing Color?

Here’s how you change an image from RGB to CMYK without losing color:

Soft Proofing: In design programs like Adobe Illustrator and Photoshop, you can use the “Soft Proofing” feature to see how the RGB colors will appear in CMYK, giving you a chance to tweak the colors before converting.

ICC Profiles: Use ICC profiles for accurate color conversion. These profiles help you map one color space to another, minimizing color loss during conversion.

Manual Adjustments: Sometimes you may need to manually adjust colors post-conversion. Use the color picker or color panel to fine-tune the colors to your liking.

What Is The Best Way To Convert Pantone To CMYK?

Here’s the best way to convert Pantone to CMYK:

Pantone to CMYK Tables: The most accurate way to convert Pantone to CMYK is to use the conversion tables provided by Pantone itself. These tables give you the closest CMYK values for each Pantone color.

Design Software: Both Adobe Illustrator and Adobe Photoshop offer options to convert Pantone colors to CMYK. In Illustrator, you can do this by going to Edit > Edit Colors > Convert to CMYK.

Consult Your Print Provider: The best result will often come from consulting with your printing company, as they may have recommendations based on their specific printing processes.

How Do I Know If My Illustrator File Is CMYK?

Here’s how you know if your Illustrator file is CMYK:

Quick Check: Open your file in Adobe Illustrator and look at the bottom of the window. You’ll see an icon indicating whether you’re in RGB or CMYK mode.

File Menu: Alternatively, you can go to File > Document Color Mode. A checkmark will appear next to the current color mode, either RGB or CMYK.

Should I Use CMYK Or RGB In Illustrator?

Whether you should use CMYK or RGB in Illustrator depends on your final output. Here’s how you decide:

  • For Printing: Choose CMYK. It’s designed for printing and will give you more accurate colors when your project hits the press.
  • For Digital: RGB is the way to go. It offers a wider range of colors suitable for digital screens, from mobile devices to desktop monitors.

Dual Versions: It’s a good idea to keep two versions of your project if it will be used both digitally and in print. This way, you have the optimal color settings for each medium.
